Submersible Natural Gas Flow Meters, Natural Gas Production Controllers

P7MAIN/CDi3.P7/CDi3.LE Boardsets Available To/Through SCi.RS Members Only, "Offshore" and "Marine" need not apply

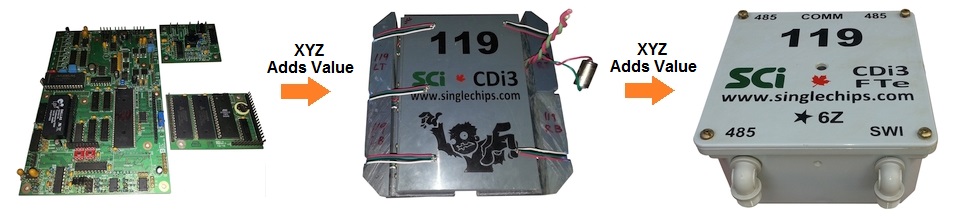

The SingleChips International Research Society (SCi.RS) which holds the technology through its founders will soon form the commercial arm of the society, the singlechips.IKE company, which will be a mostly fabless company that may choose from time to time to fabricate a product to level A, B, or C as shown below. XYZ is an outfit made up of SCi.RS members operating at a different location, XYZ may choose to source from singlechips.IKE as little as a parts list and some blank (unpopulated) boards, although it is more likely, initially at least, to source product in a more advanced state of completion. In the specific submersible example below the monthly software authorization charges of 9oz or 10oz Ag/m for simple flowmeters, and 11oz, 12oz and 13oz Ag/m for switching flowmeters apply and are the same regardless of the state of completion of source devices. For land use, discount all prices by 50%. The slideshows at page bottom show more general examples of system use. Pricing in maples Ag.

Level A, 168oz Ag + (9, 10, 11, 12, 13 oz Ag/m)

Level B, 251oz Ag + (9, 10, 11, 12, 13 oz Ag/m)

Level C, 335oz Ag + (9, 10, 11, 12, 13 oz Ag/m)

Submersible Natural Gas Digital Flow Meters/Production Controllers

There are two different hardware platforms, affectionately known around here as:

CDi3s.FTe, CorvetteII in a typical 3-TR submersible flow meter application.

CDi3s.FTe, CorvetteII in a 3-TR digital submersible plunger lift application.

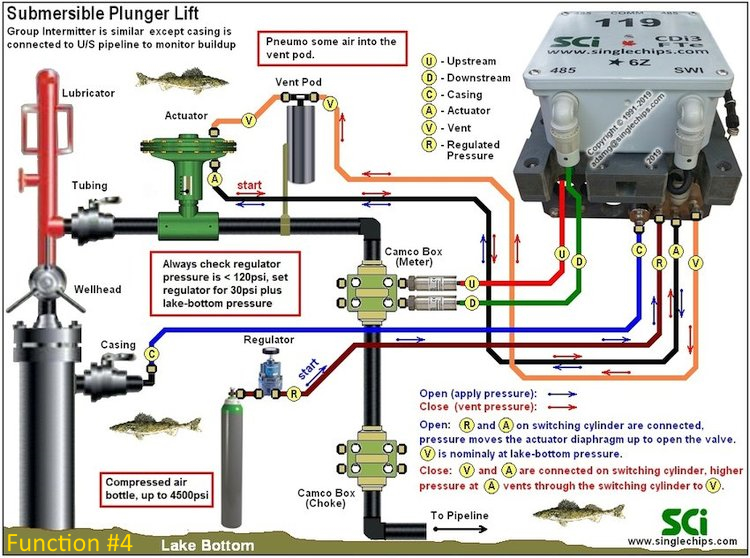

Function #4 CDi3t.FTe, CorvetteI in a 3-TR digital submersible plunger lift application.
Capability: U/S D/S flow recording, timed and smart switching. sa: 13oz Ag/m

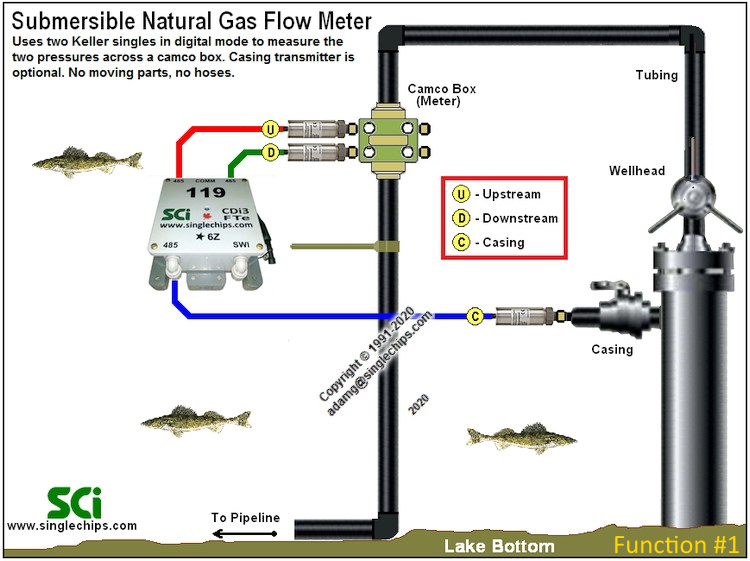

Function #1 CDi3t.FTe, CorvetteI in a 3-TR digital submersible flow meter application. Capability: U/S D/S and casing flow recording only, no switching. sa: 10oz Ag/m

CDi3s.FTe, CorvetteII in a typical 2-TR submersible flow meter application.

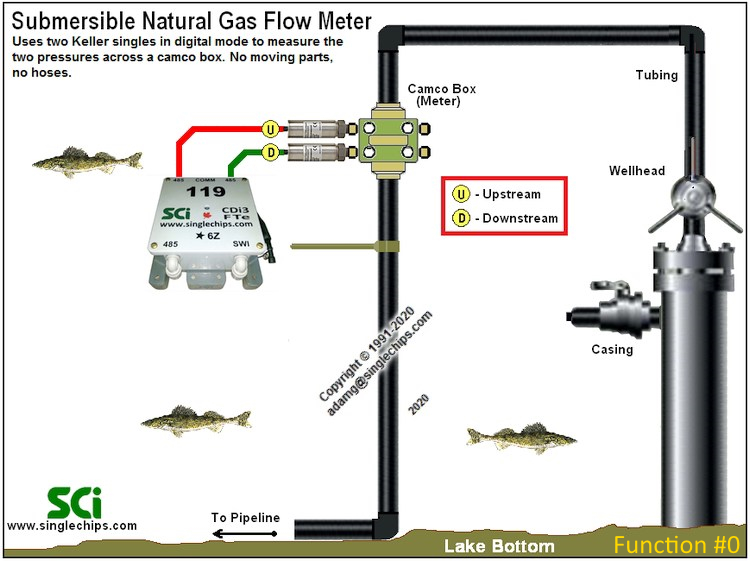

Function #0 CDi3t.FTe, CorvetteI in a 2-TR digital submersible flow meter application. Capability: U/S D/S flow recording only, no switching. sa: 9oz Ag/m

CDi3s.FTe, CorvetteII in a typical 1-TR digital submersible plunger lift application.

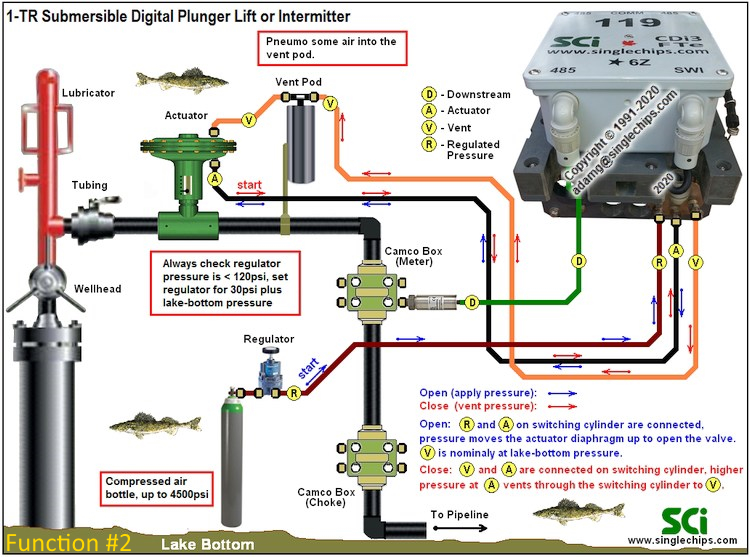

Function #2 CDi3t.FTe, CorvetteI in a 1-TR digital submersible plunger lift application.
Capability: Timed switching only, cannot record flow. sa: 11oz Ag/m

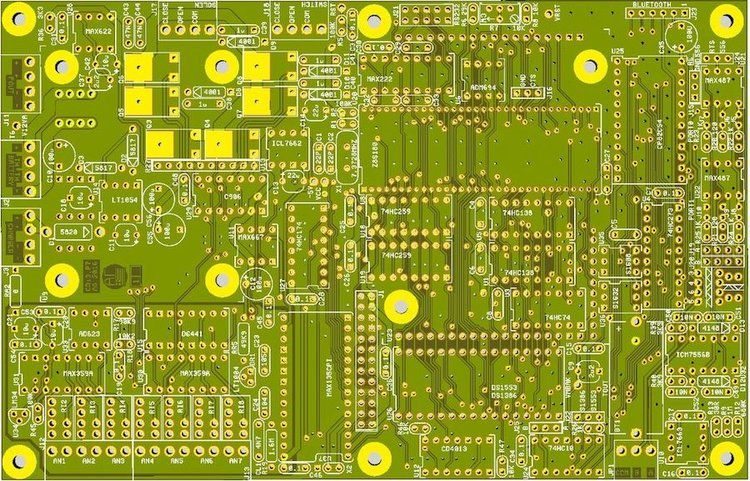

The CorvetteII(CDi3t) which can be built by assembling new CDi3.P7 boardsets designed in 2016, and,

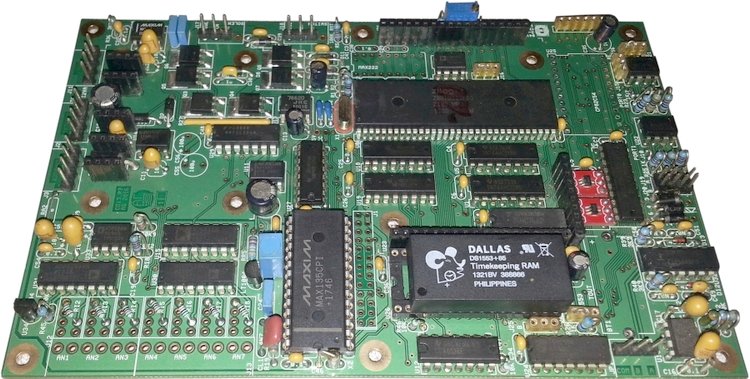

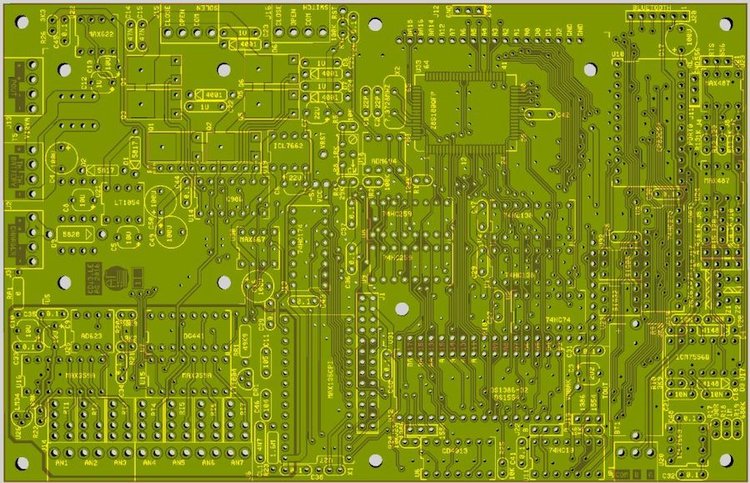

The Ferrari (CDi3f) which can be built by assembling new CDi3.LE boardsets designed in 2016.

One box, five functions, two flow meters and three switchers, arranged and numbered in increasing complexity from 0 to 4.

CDi3s.FTe, CorvetteII in a typical 2-TR digital submersible plunger lift application.

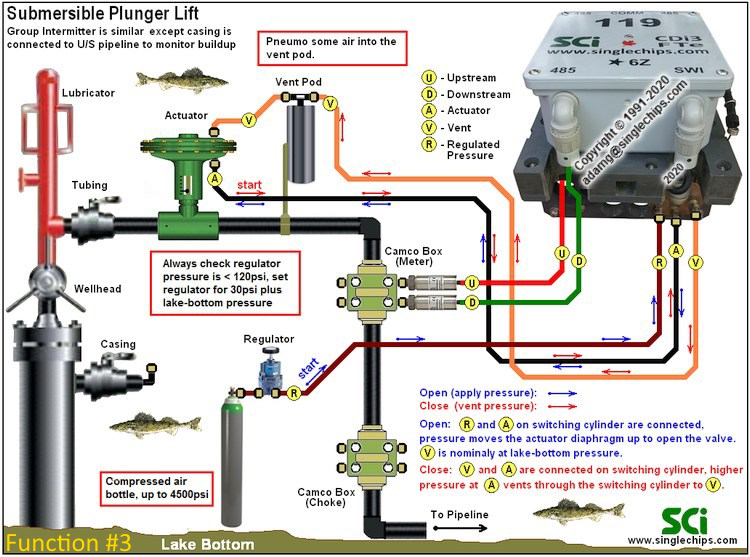

Function #3 CDi3t.FTe, CorvetteI in a 2-TR digital submersible plunger lift application.
Capability: U/S D/S flow recording and some smart switching. sa: 12oz Ag/m

Assembly	Nickname	Boardset	Future Start Max	Board On Time	Batt. Chem./Capacity	RTC	Battery Life
CDi3t.FTe.*6Z	CorvetteII	2016 CDi3.P7	1.5 Days	2.5 Seconds	NiMH/10 AmpHours	DS1386	23 Years
CDi3f.FTe.*3Z	Ferrari	2016 CDi3.LE	30 Days	2.5 Seconds	NiMH/10 AmpHours	DS1553	23 Years

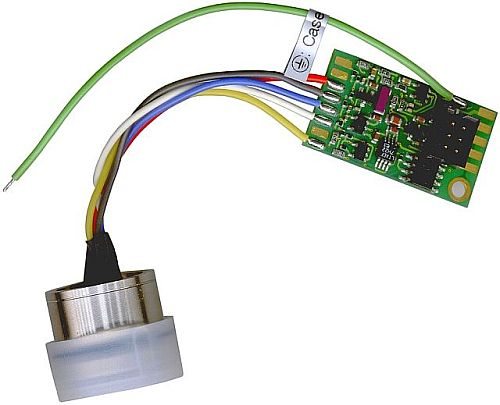

TR = TRansmitter = PA10 series RS485 digital pressure transmitter, supplied by Keller in Switzerland. These are state-of-art devices, silicone oil isolated, with Hastelloy C276 stainless wetted parts. The company allows its clients to buy just the essentials and thus subsequently design and build their own housings. Only one type of pressure transmitter to stock!
